Mud Lab Organizer Complete Bundle: Benchtop Kit + Wall Rack
Mud Lab Organizer Complete Bundle: Benchtop Kit + Wall Rack
Made to order: printed for you after you order.
Every module in the mud lab line in one order: the six benchtop modules plus the flush wall-mount rack. Every piece of glassware gets a home on the bench or the wall. Designed by a working mud engineer.
A rig lab is small, it shakes, and the glassware never stays put. Bottles walk to the edge, pipettes roll, cylinders tip while they dry, and the small parts disappear.

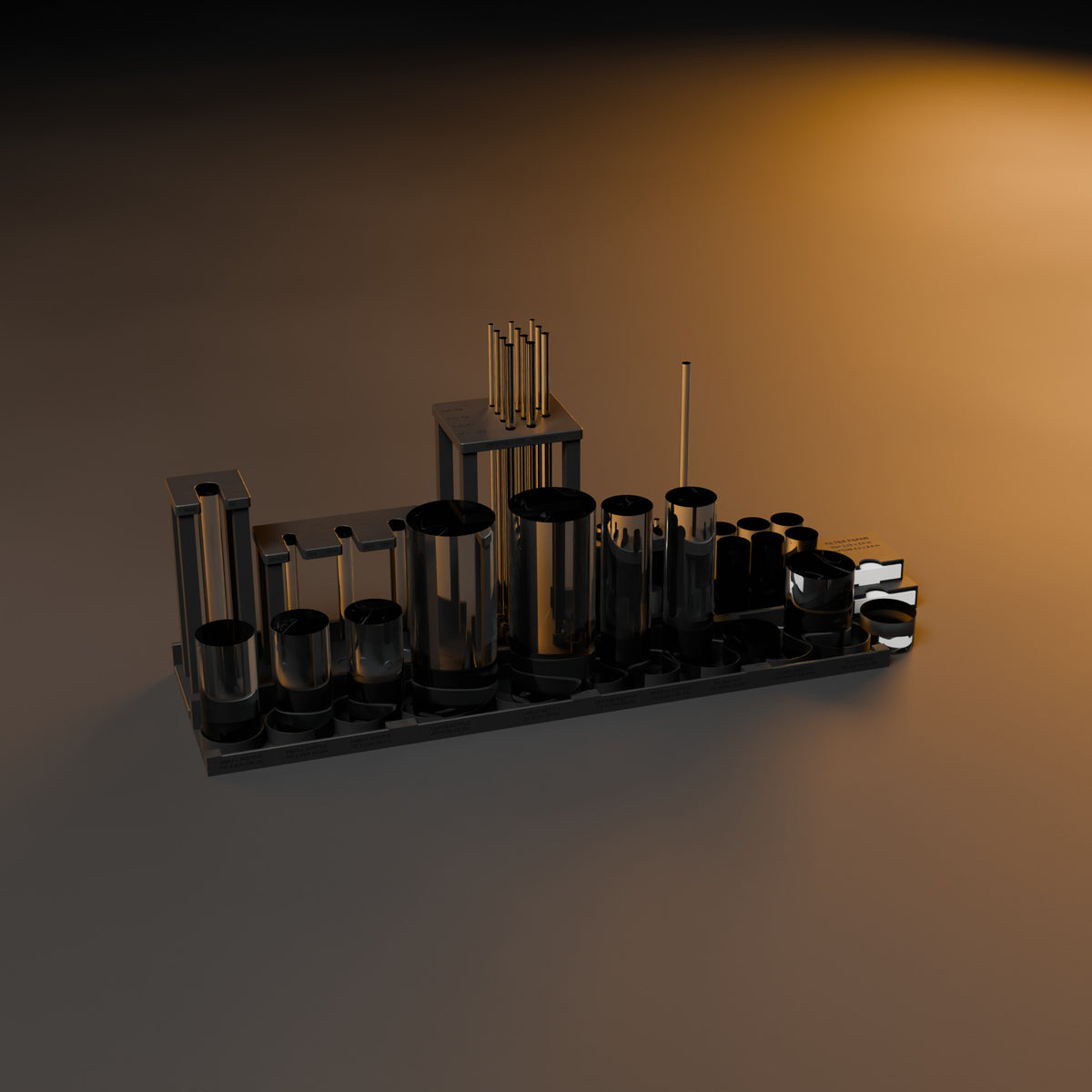

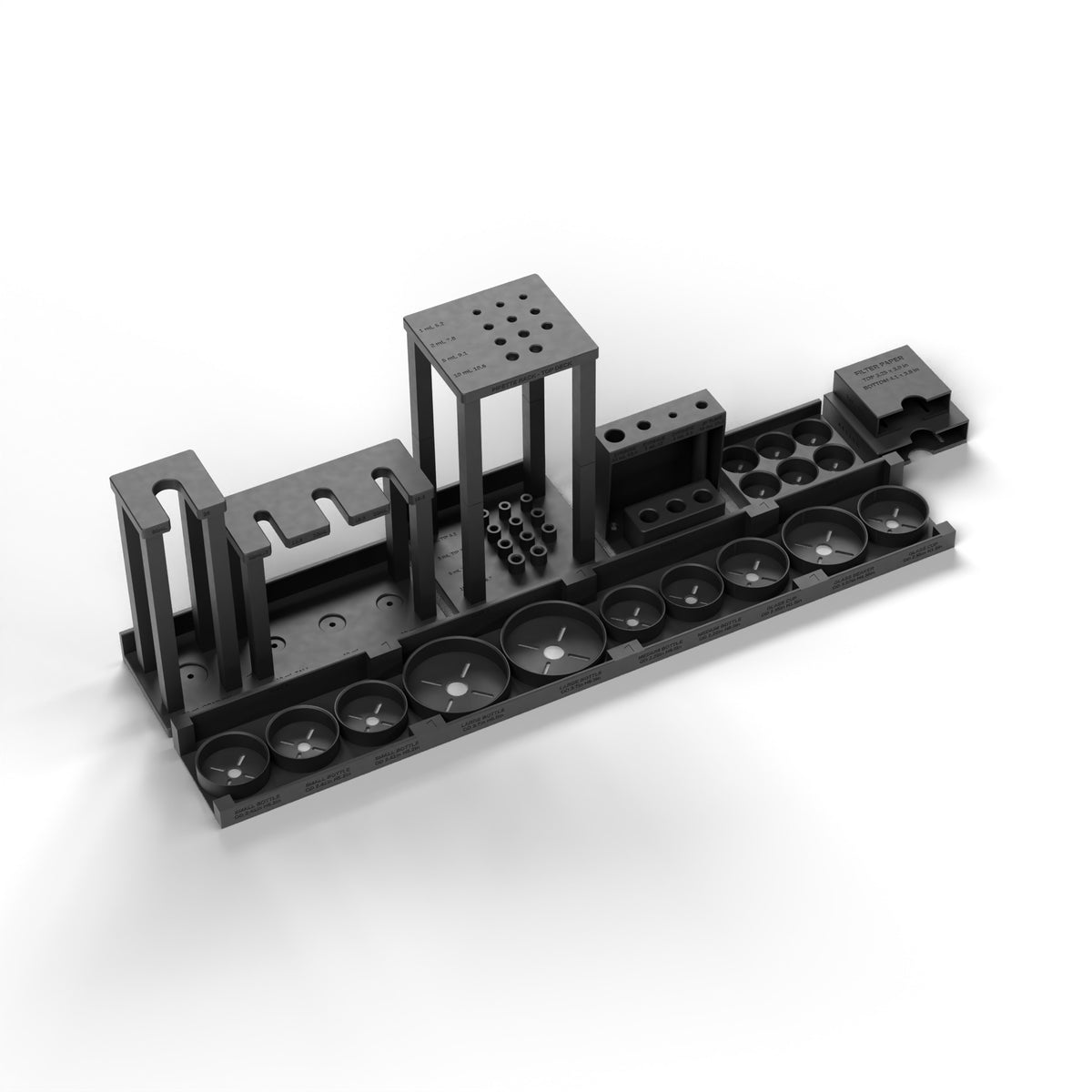

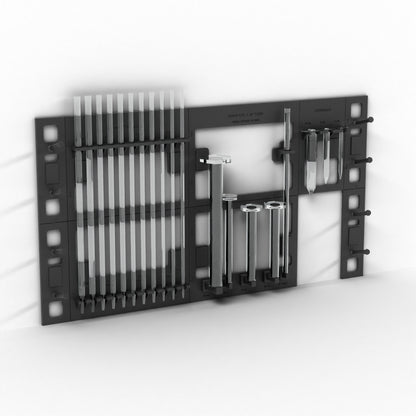

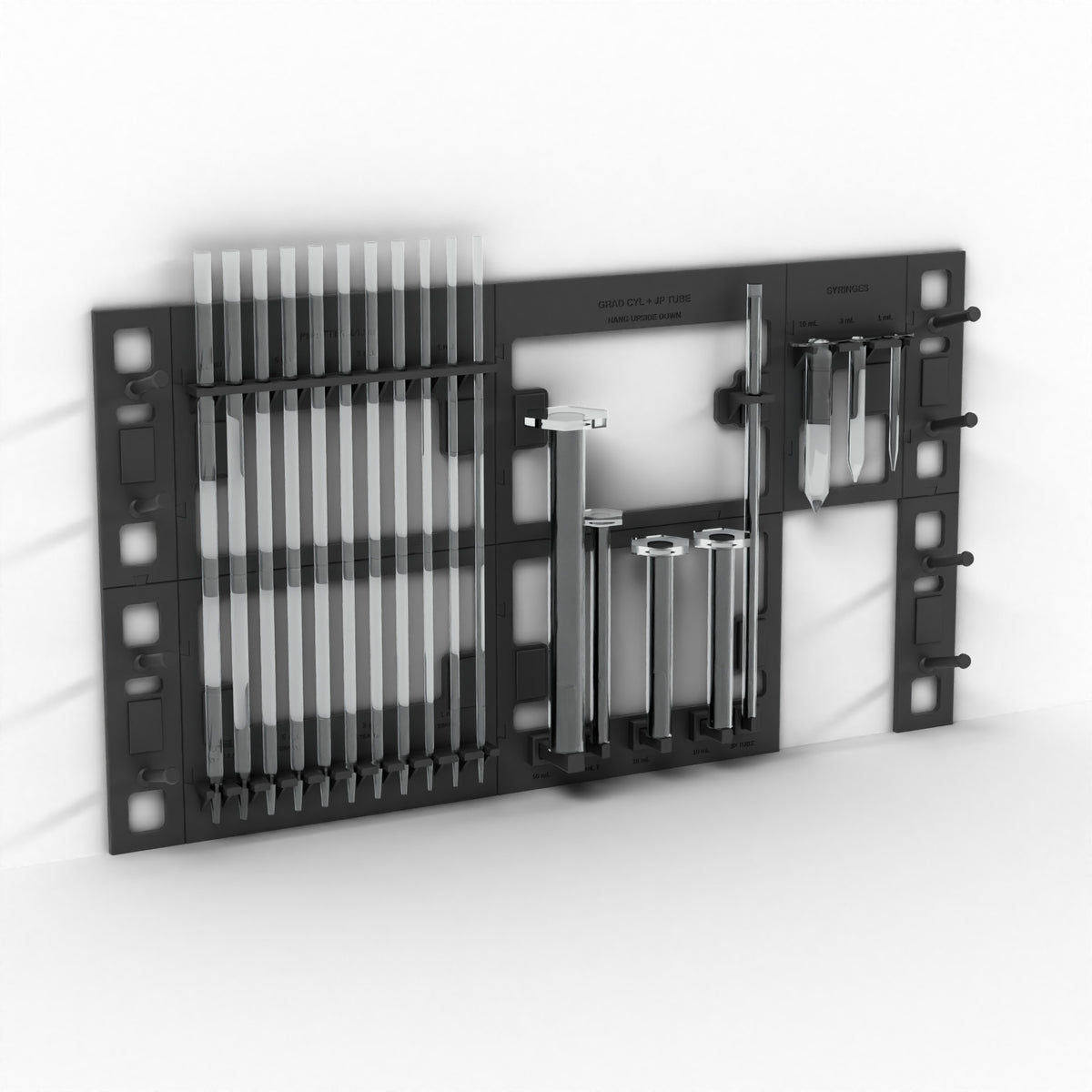

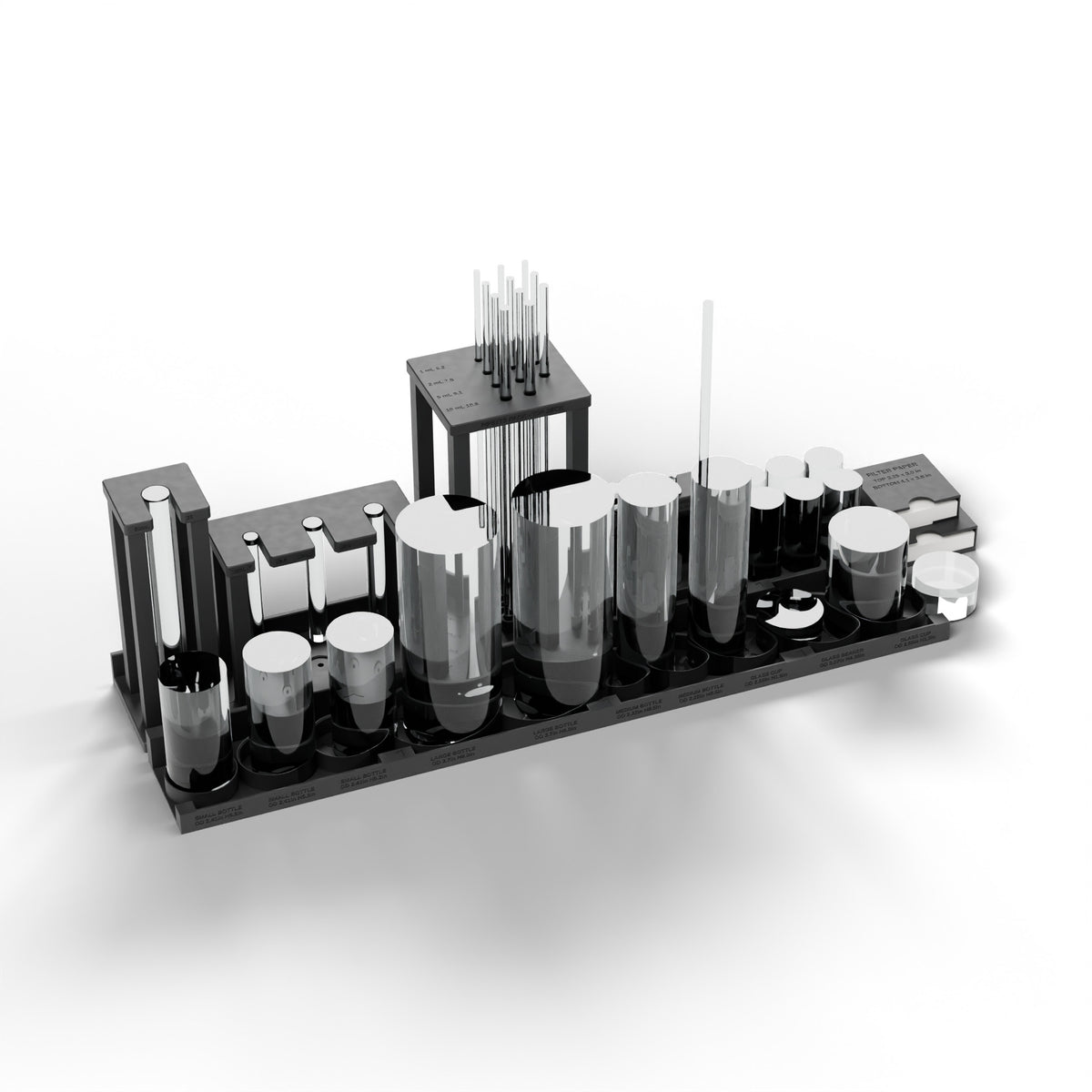

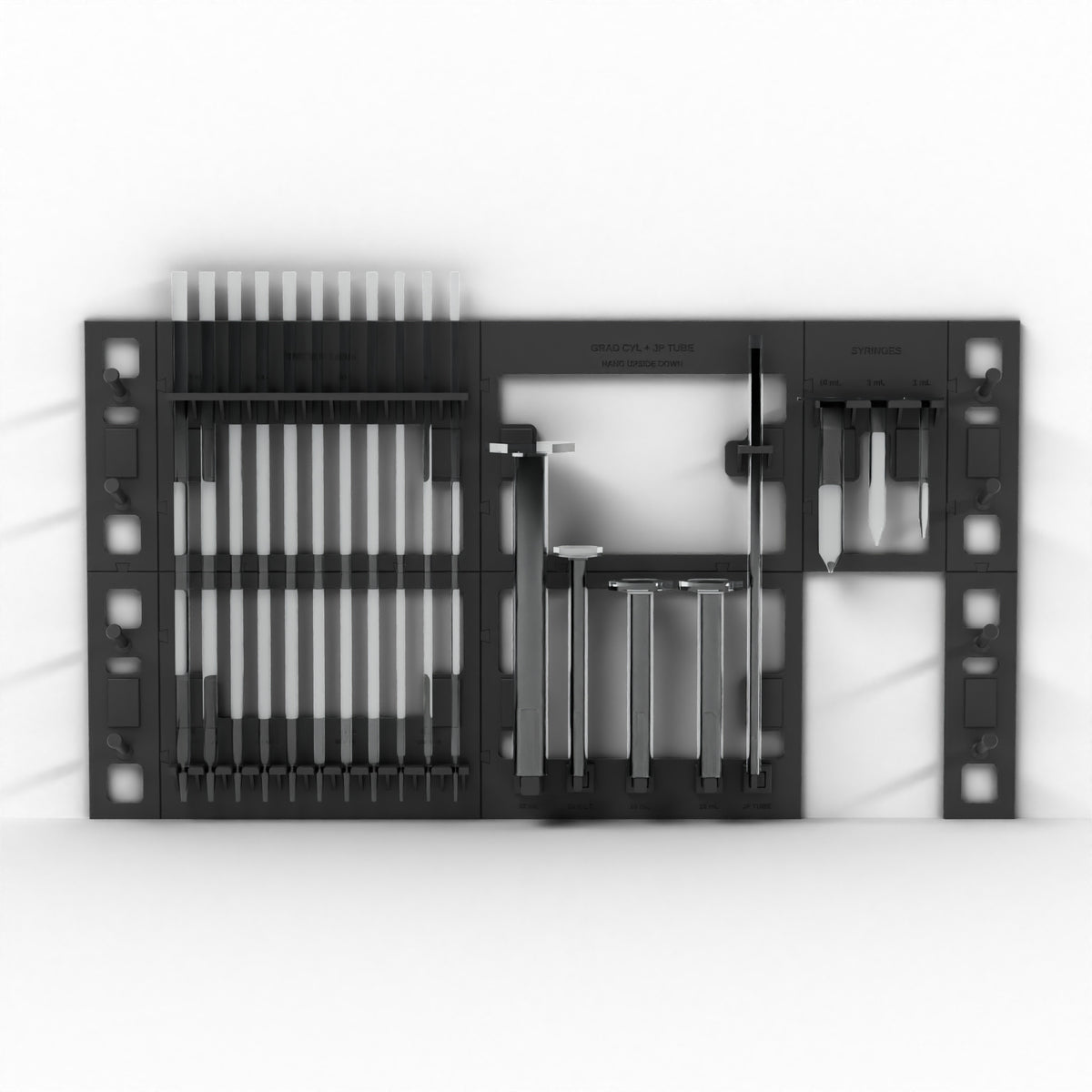

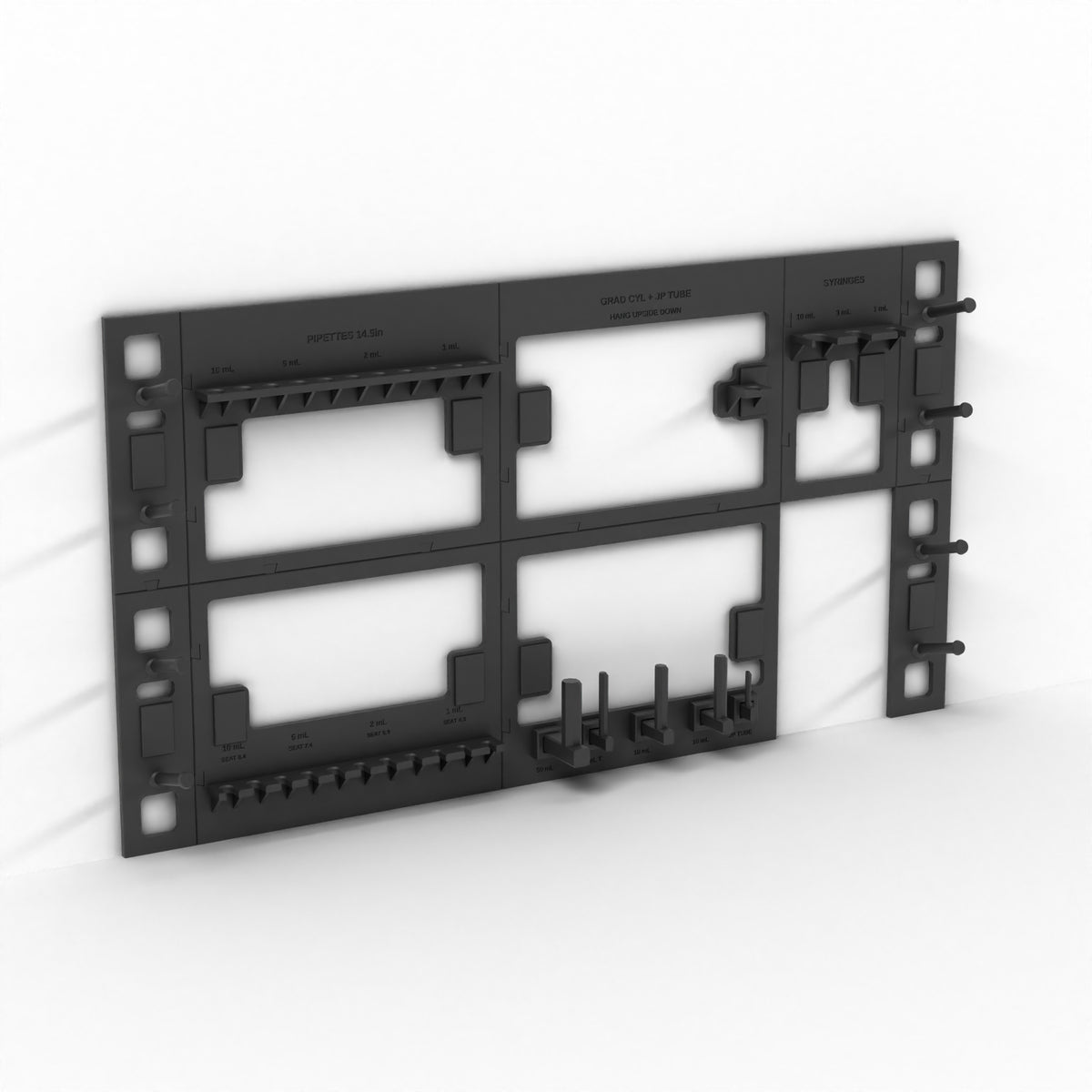

This bundle covers the whole lab. On the bench, you get a dropper bottle block, four bottle and beaker trays that slide together, a two-slot filter paper box, a graduated cylinder drying rack, an upright pipette rack, and a combo block for syringes, the JP tube and CO2 cartridges. On the wall, the flush wall-mount rack hangs pipettes, graduated cylinders, the JP tube, syringes and hand tools to drain.
Every slot has a debossed label and every cup and well drains. Keyholes on the backs let you move pieces to the wall when the bench fills up. Use the full set, or split it between the bench and the wall.
You save compared with buying the modules separately. Wall screws are not included.
- Everything in the line: all six benchtop modules plus the 09 wall rack.
- Bench and wall: the benchtop footprint is about 34.4 x 10.9 in (873 x 278 mm), and the wall rack is about 25.6 x 13.8 in and about 2.75 in deep.
- Everything drains: drain holes in every cup and well, and cylinders hang upside down on both the bench rack and the wall rack.
- Debossed labels on every slot and peg.
- Save vs. buying modules separately.
- PLA standard, PETG upgrade for field or doghouse use. Wall screws not included.
What's in the box
- 1 x Dropper Bottle Block (6-cup)
- 4 x Bottle & Beaker Trays (A, B, C, D)
- 1 x Filter Paper Box (2-slot)
- 1 x Graduated Cylinder Drying Rack, unassembled: 2 bases, 2 decks, 4 tall posts, 4 low posts, 20 joining pins (16 + 4 spares)
- 1 x Pipette Rack, unassembled: 1 base, 1 deck, 8 post segments, 16 joining pins (12 + 4 spares)
- 1 x Syringe, JP Tube & CO2 Cartridge Combo Block
- 36 joining pins in total: 28 needed plus 8 spares, 4 per rack (counted in the rack lines above)
- 1 x Flush Wall-Mount Rack: 9 panels + 5 peg inserts (50 mL, 10 mL tall, 10 mL x2, JP tube)
- Wall screws not included. Glassware and tools not included.
What it fits
Sized around the glassware listed below. Check your glassware against these sizes before you order.
| Item | Size the kit is built around |
|---|---|
| Dropper bottles (6) | 1.55 in OD x 4.18 in tall |
| Small bottles (3) | 2.41 in OD x 5.2 in tall |
| Medium bottles (2) | 2.22 in OD x 8.5 in tall |
| Large bottles (2) | 3.7 in OD x 9.0 in tall |
| Glass cups (2) | 2.55 in OD x 1.5 in tall |
| Glass beaker (1) | 3.07 in OD x 4.36 in tall |
| Filter paper | 4.1 x 3.8 in and 3.25 x 3.0 in |
| Graduated cylinders | 50 mL (0.965 in OD x 9.0 in), 10 mL tall (0.53 in OD x 6.25 in), 10 mL x2 (0.7 in OD x 5.34 in) |
| Pipettes (11) | 10 mL x2, 5 mL x3, 2 mL x3, 1 mL x3, all 14.5 in long |
| Syringes (3) | 10 mL, 3 mL, 1 mL |
| JP tube (1) | 10 mL, 0.39 in OD x 12 in long |
| CO2 cartridges (3) | 0.705 in OD x 2.575 in long |
The sizes above are for the benchtop modules. Wall rack (design sizes): cylinder pegs 12.6 mm (50 mL), 6.0 mm (10 mL tall), 8.6 mm (10 mL) and 4.0 mm (JP tube) across. Eight 8 mm hand-tool pegs with an 11 mm tip lip. Benchtop rack sizes don't carry over to the wall rack.
Material: PLA (standard) or PETG (upgrade for field or doghouse use). Choose it in the Material option.
Care
- Keep away from heat sources (retort, hot plate, hot truck cab); PLA softens around 55-60 °C.
- Wipe with soapy water or IPA only.
- Every cup and well has a drain hole, so drips come out the bottom. Stand bench pieces on a mat or tray, and keep one under the wall rack.
