Graduated Cylinder Drying Rack (Inverted, 2-Tower)

Made to order: printed for you after you order.

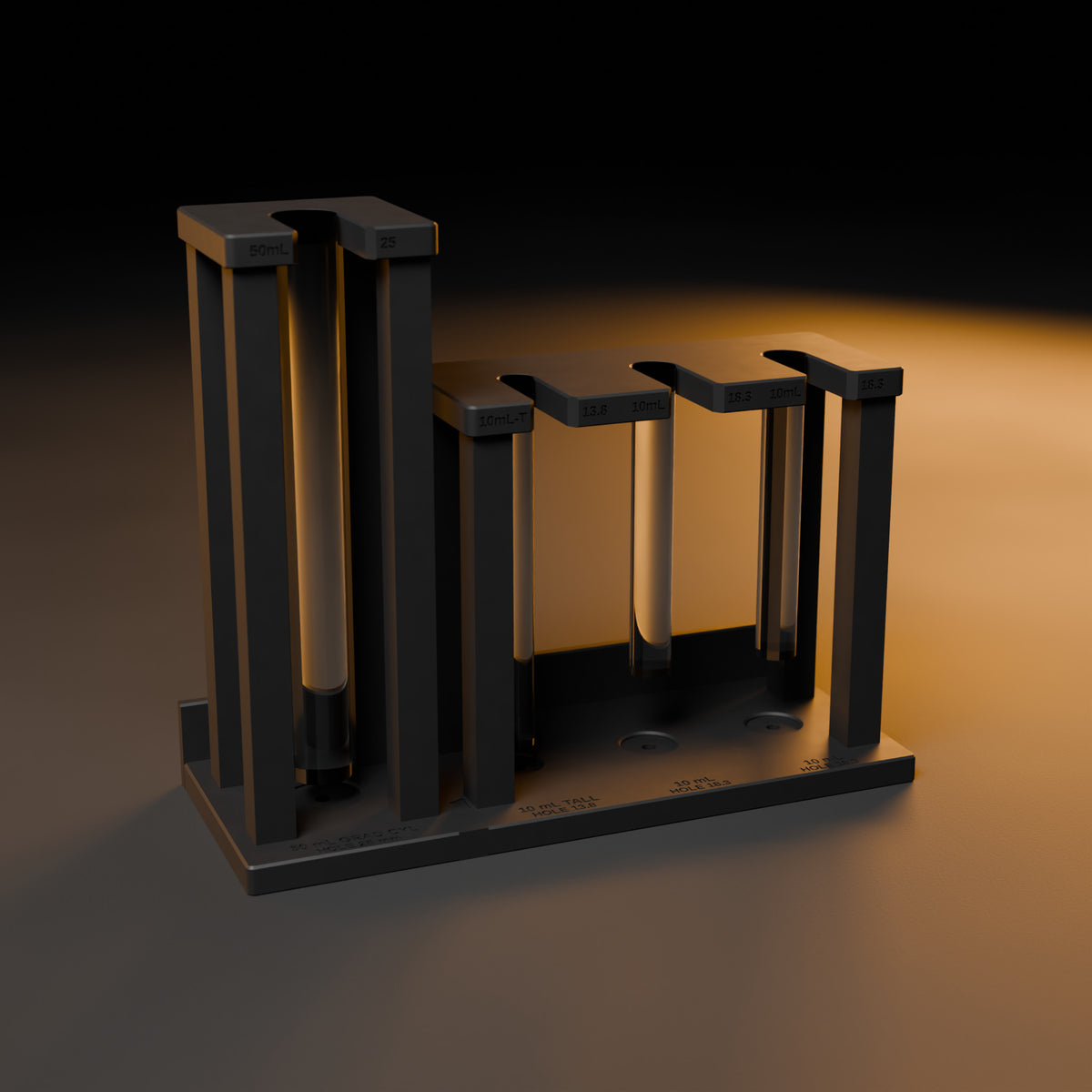

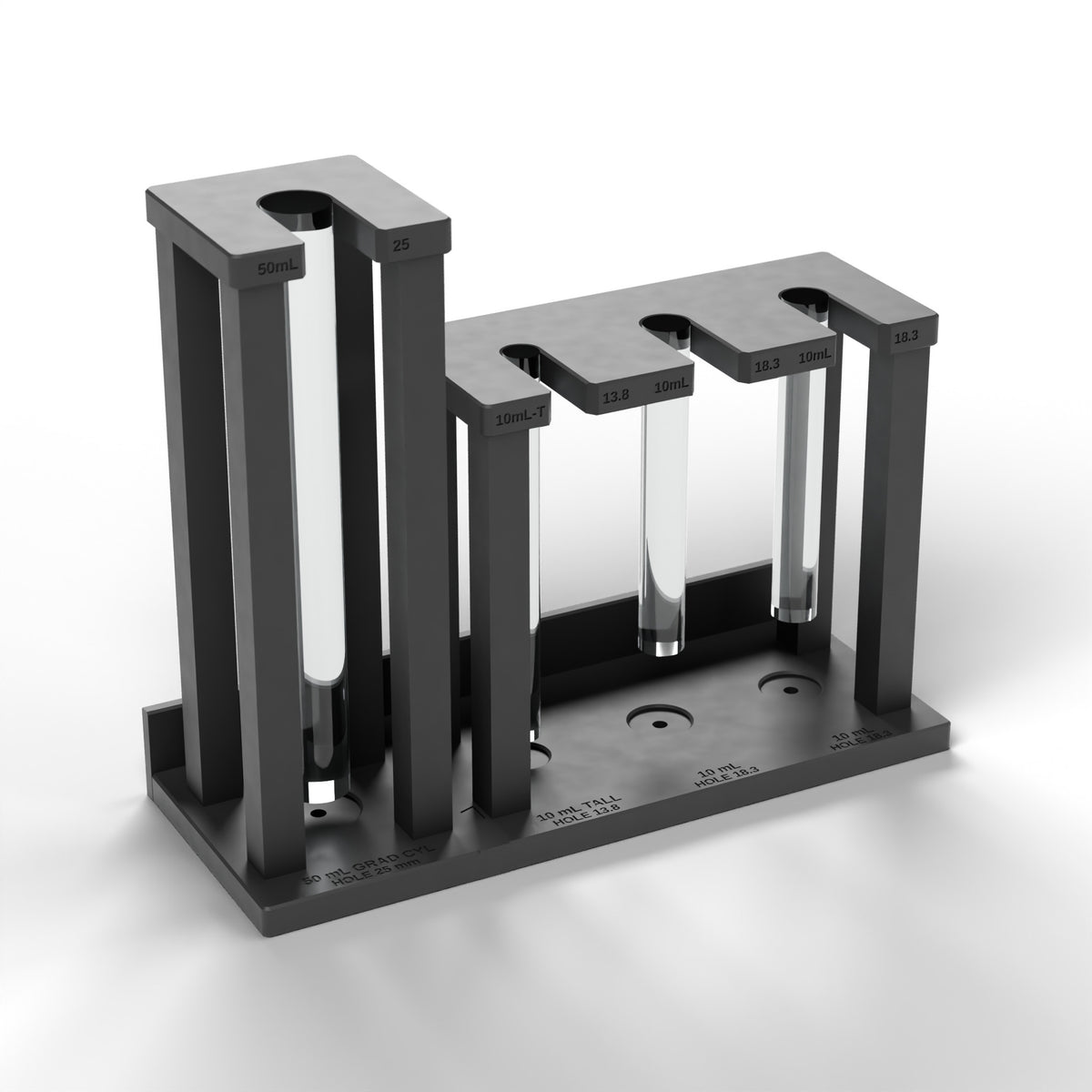

Hangs graduated cylinders upside down so they drain and dry, and keeps them off the counter where they tip over. One tall tower and one low tower.

Sized around the glassware listed below. Check your glassware against these sizes before you order.

• Tall tower: one 50 mL cylinder, 0.965 in OD x 9.0 in.
• Low tower: one tall 10 mL cylinder (0.53 in OD x 6.25 in) and two 10 mL cylinders (0.7 in OD x 5.34 in).
• Cylinders hang mouth-down through the deck and rest on their base, with a shallow drip dimple under each one.

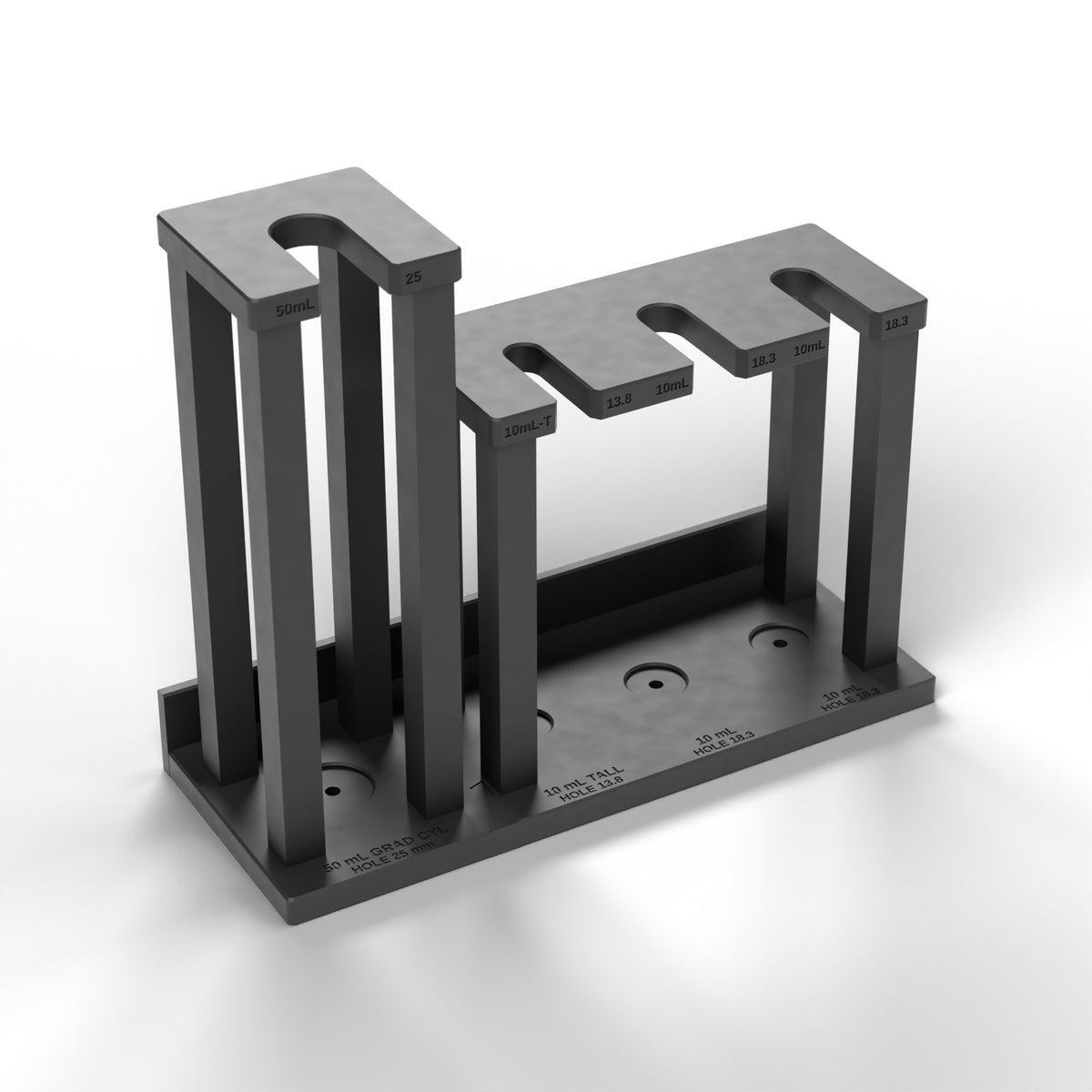

• No tools needed, snaps together. The two bases dovetail side by side, and the posts pin into the bases and decks.
• PLA standard, PETG upgrade.

What's in the box

• 1 x tall base + 1 x low base (dovetail together)
• 1 x tall deck (50 mL front-loading slot) + 1 x low deck (three 10 mL front-loading slots)
• 4 x tall posts + 4 x low posts
• 20 x joining pins (16 + 4 spares)
• Glassware not included.

Also part of the Mud Lab Organizer Kit. Save vs. buying modules separately.

Material: PLA (standard) or PETG (upgrade for field or doghouse use). Choose it in the Material option.

Care

• Keep away from heat sources (retort, hot plate, hot truck cab); PLA softens around 55-60 °C.
• Wipe with soapy water or IPA only.
