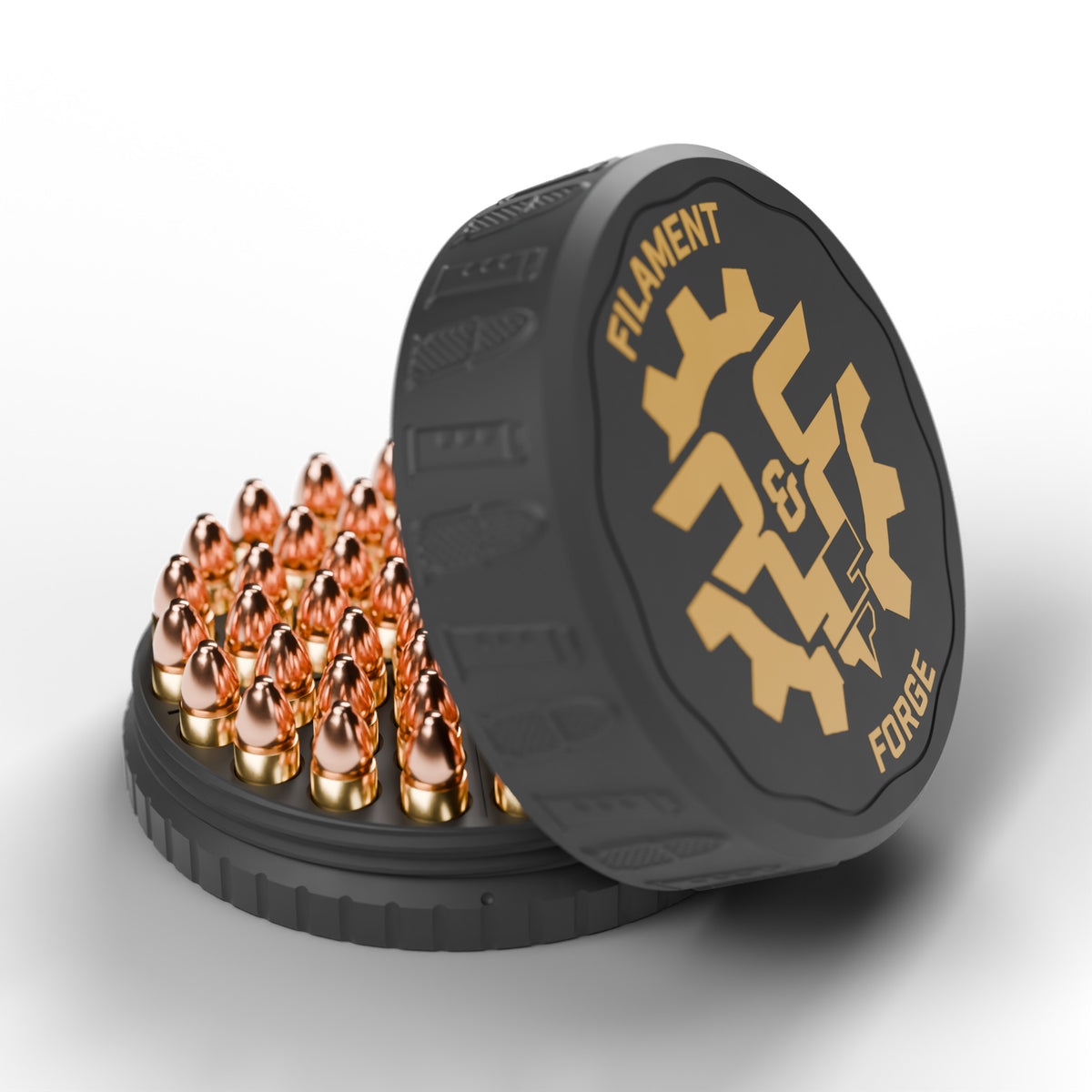

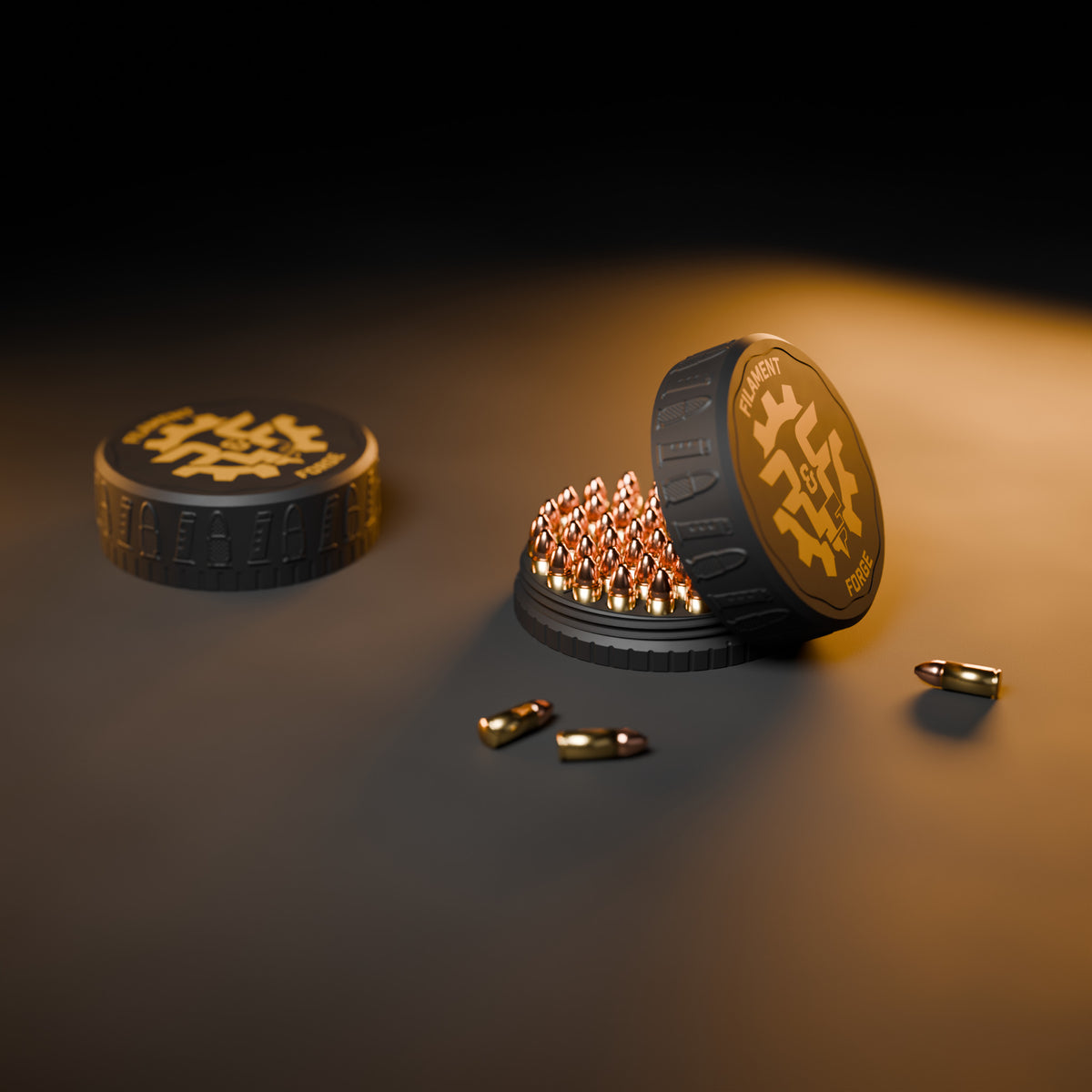

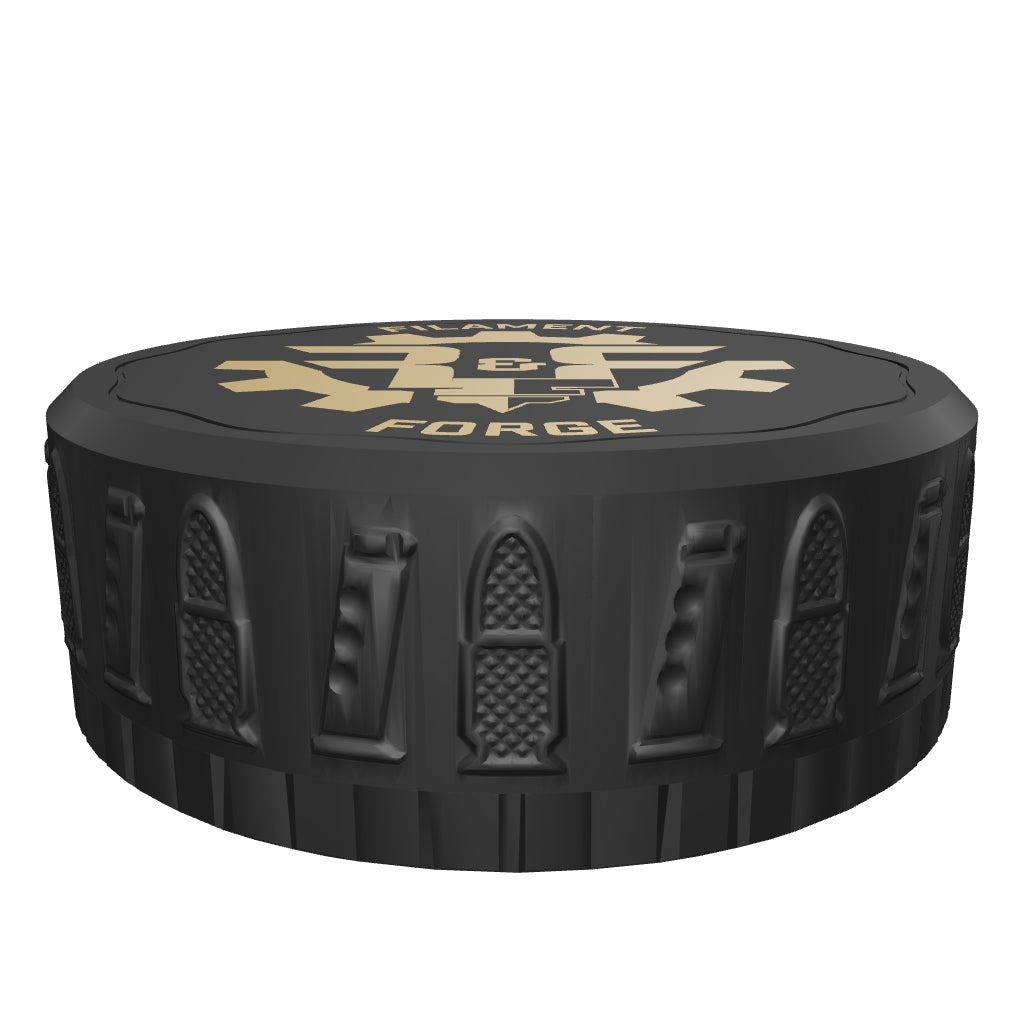

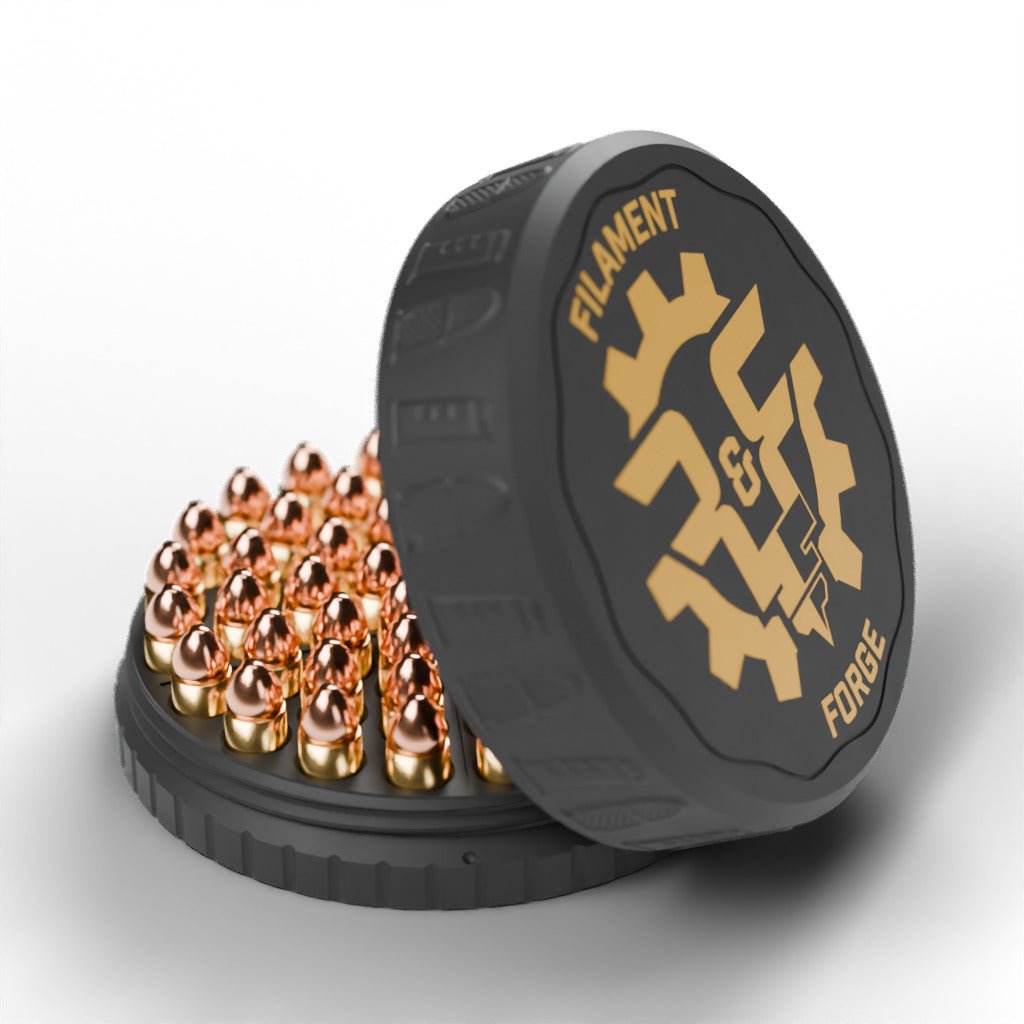

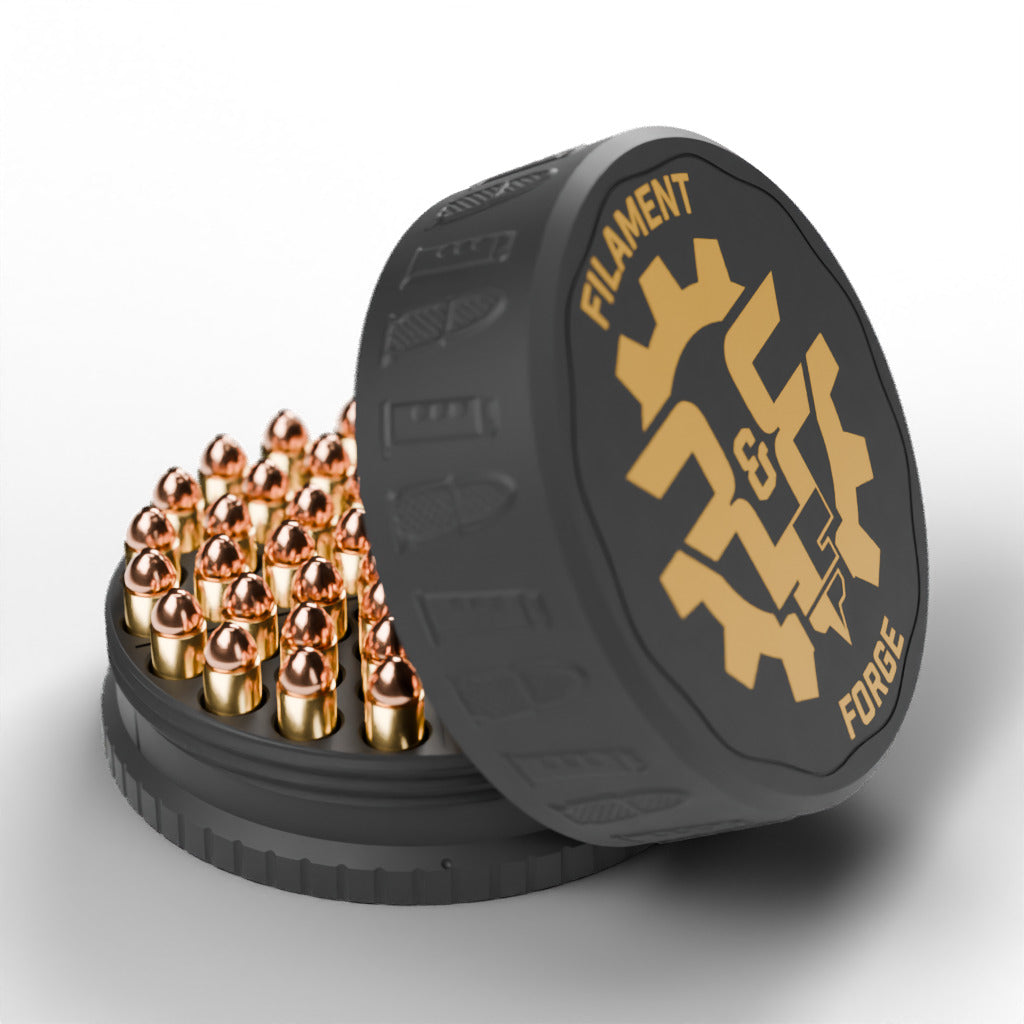

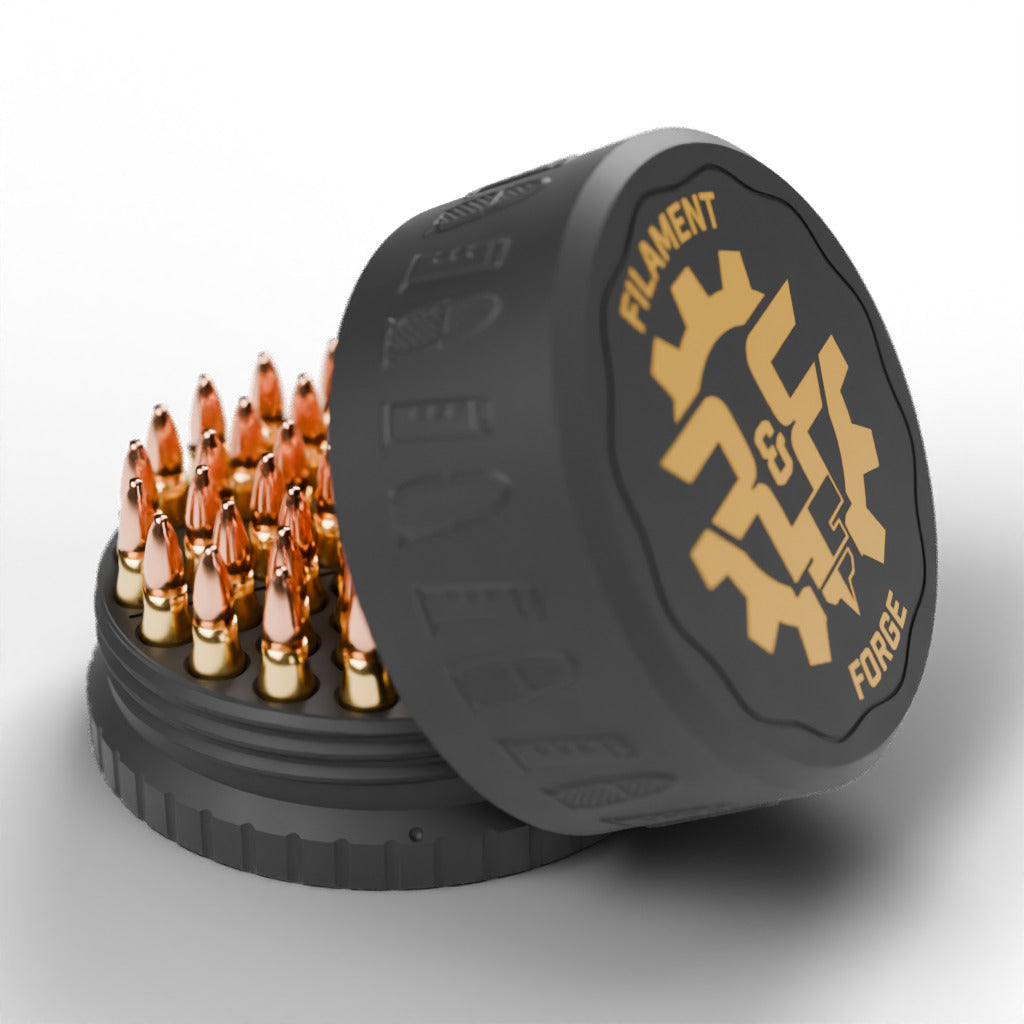

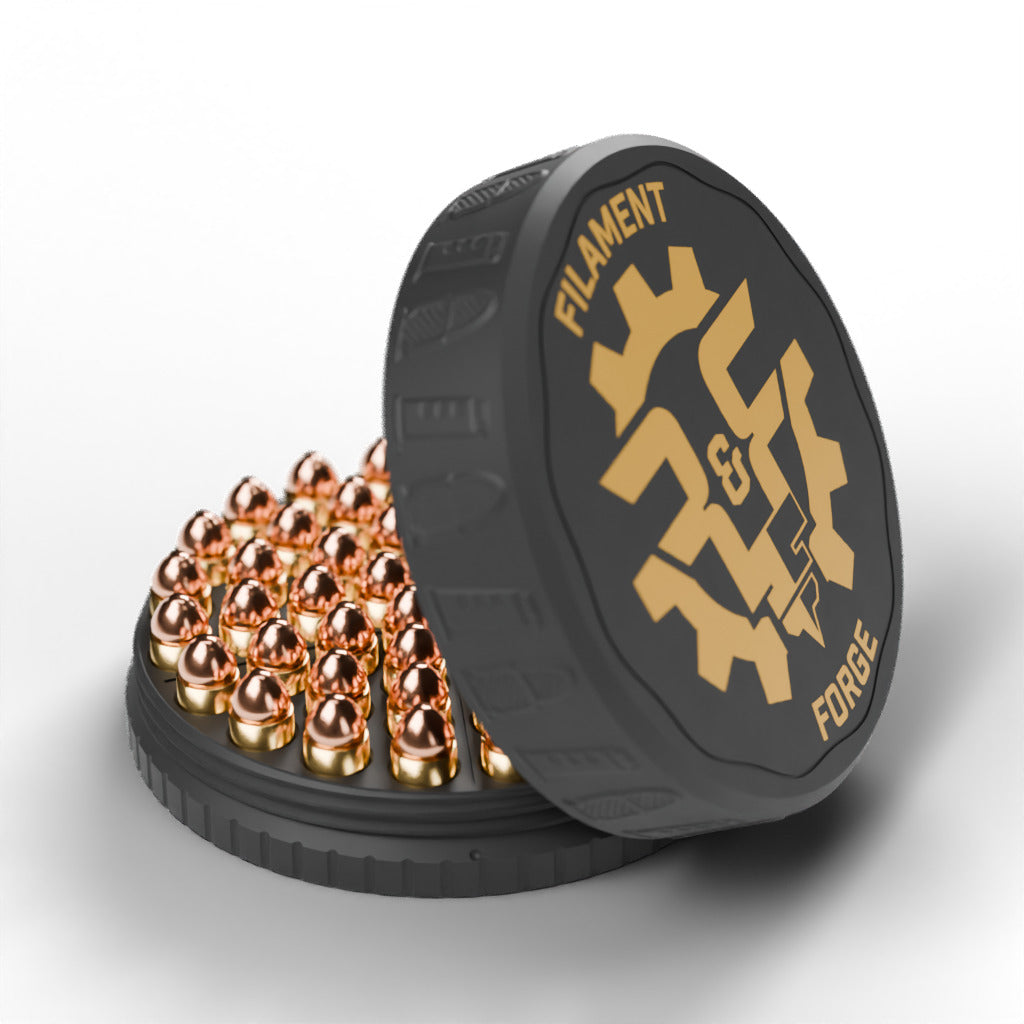

The F&F 50-round handgun ammo puck is our own design, made to order by Filament & Forge. One round puck holds a full box of 50 handgun rounds, and the lid screws on and clicks shut.

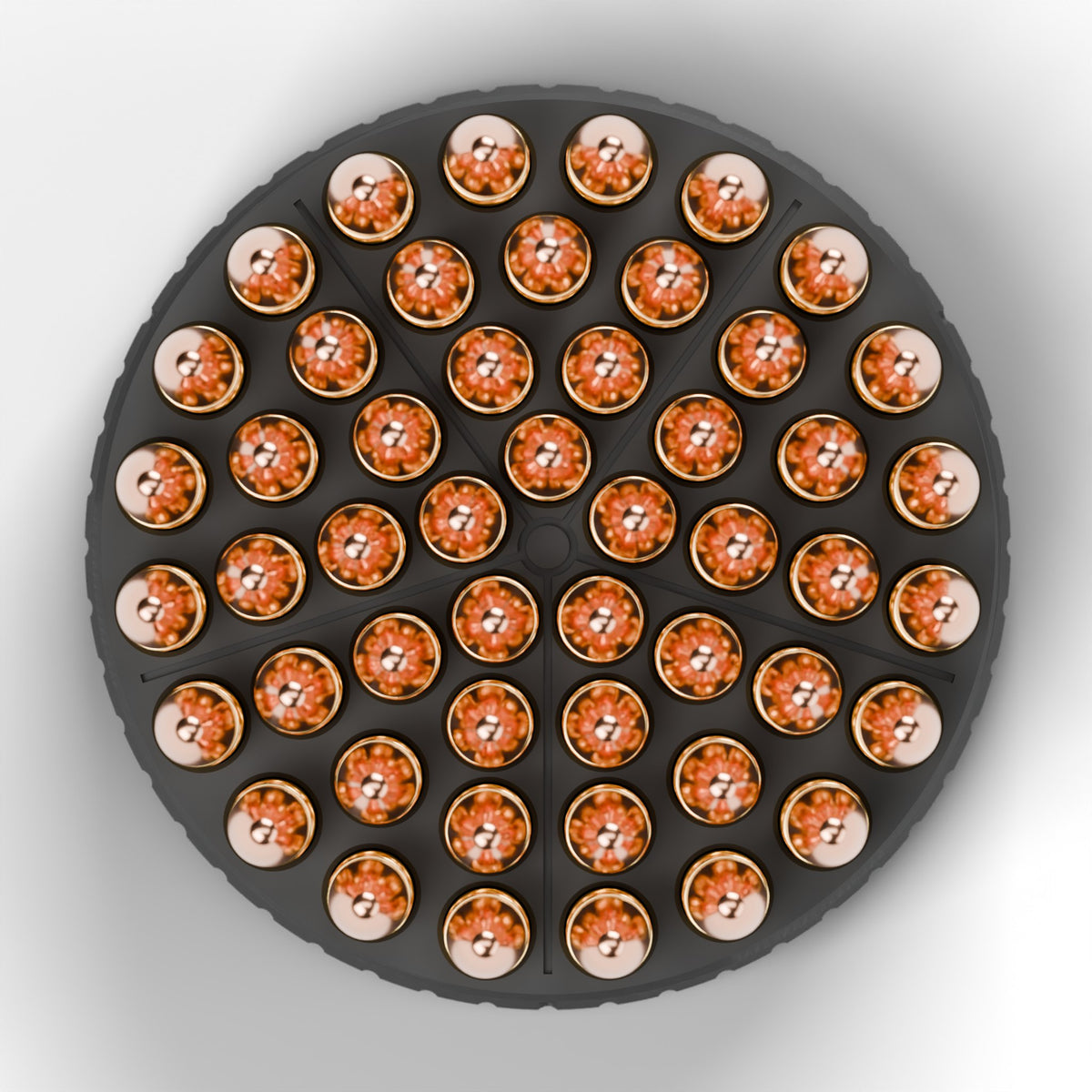

50 rounds per puck. Each round sits in its own socket, set in five wedges of ten.

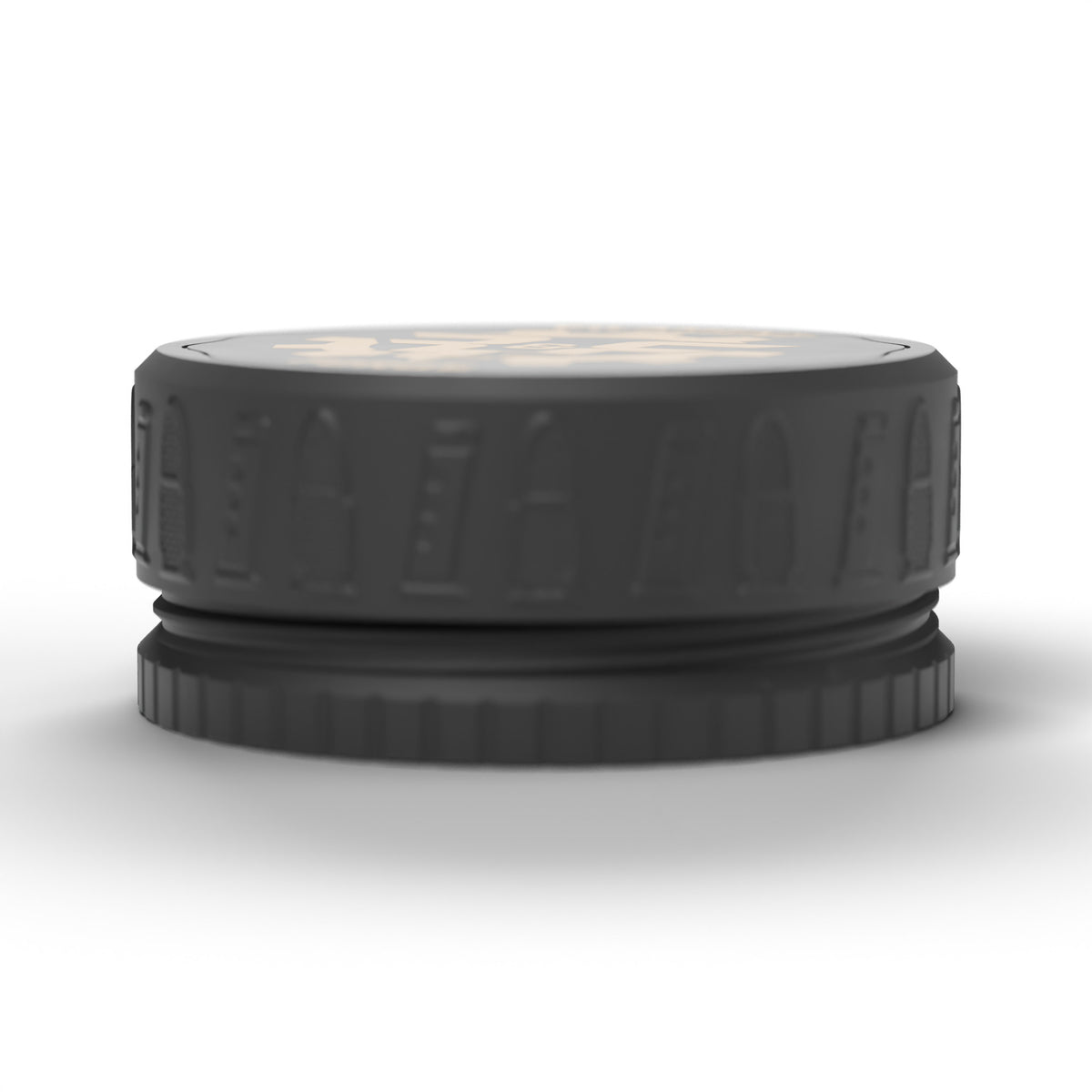

Threaded screw-on lid with click detents. A quick 3-start thread opens in about one turn, and three detents click the lid home when it's closed.

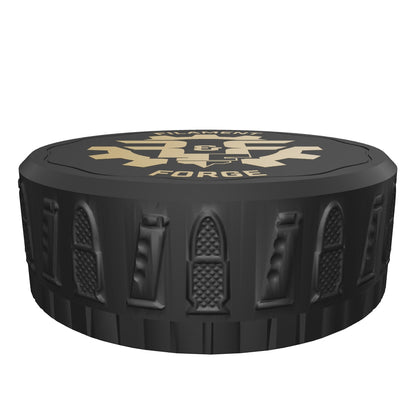

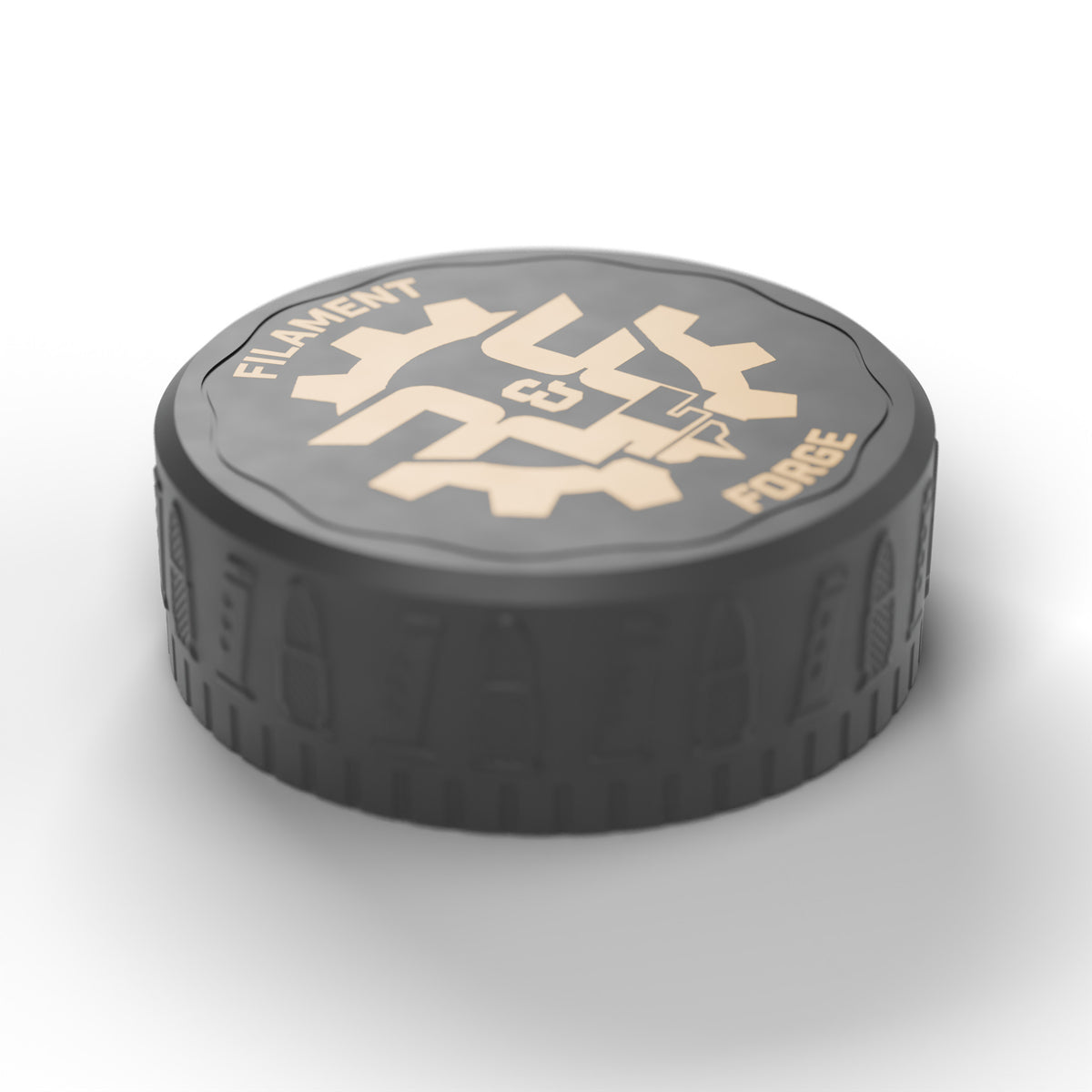

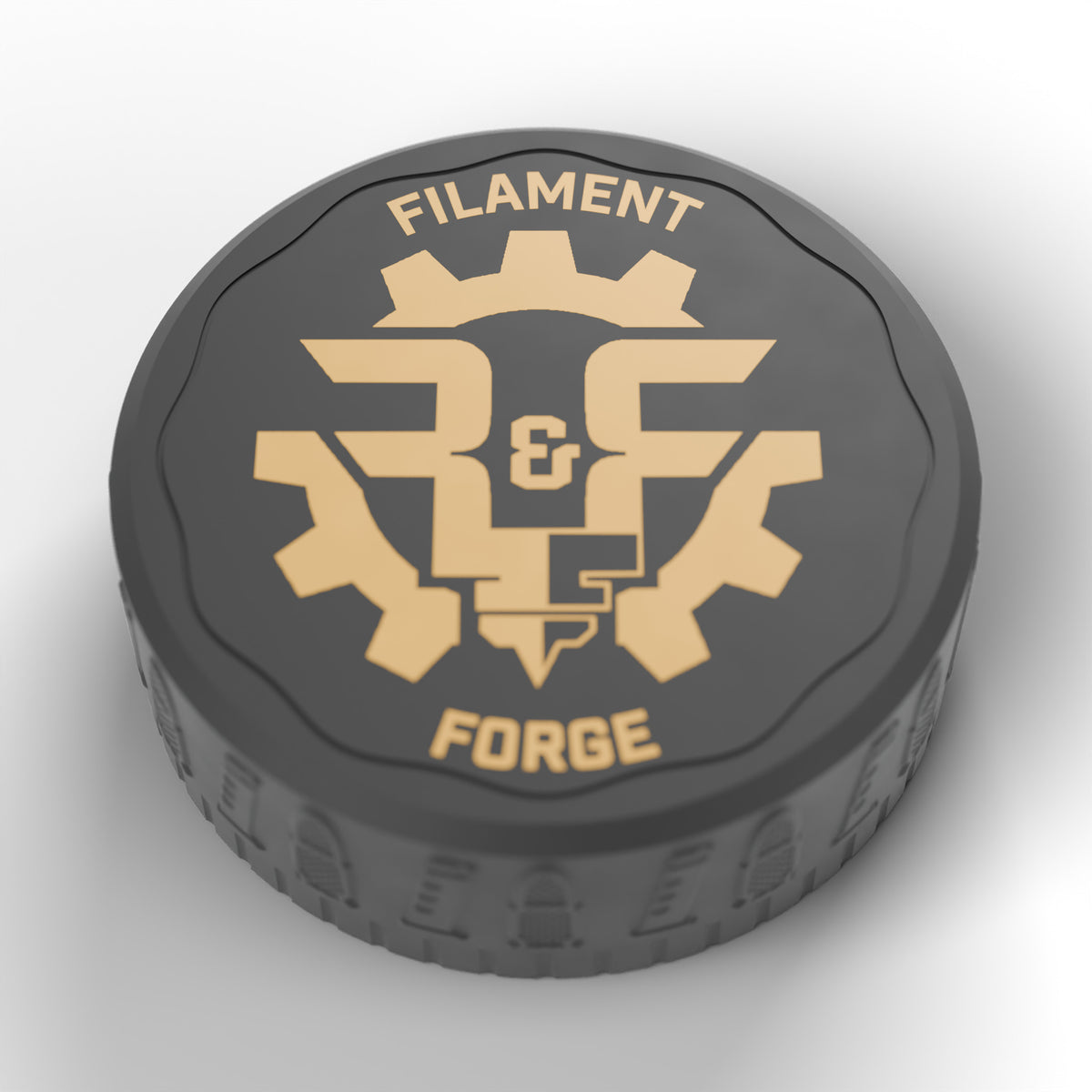

No third-party logos. Finished with a bullet-and-magazine textured lid and the Filament & Forge badge, inlaid in gold.

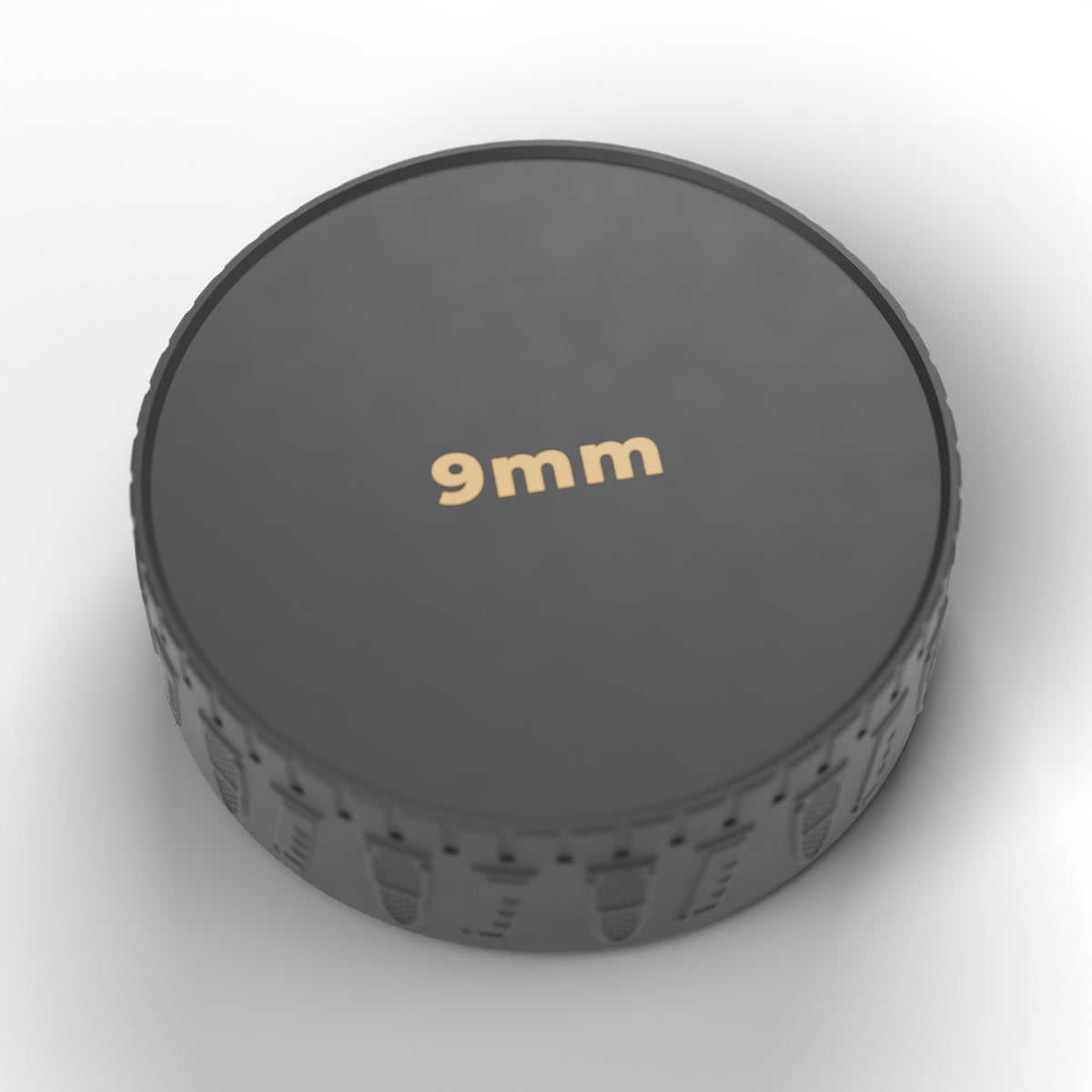

Caliber marked on the underside in gold, set flush into the base.
PLA: black base and lid, gold badge and caliber mark.
Made to order by Filament & Forge.
Sockets are sized from SAAMI/CIP max cartridge dimensions for each caliber, and the lid clears the round at max overall length.

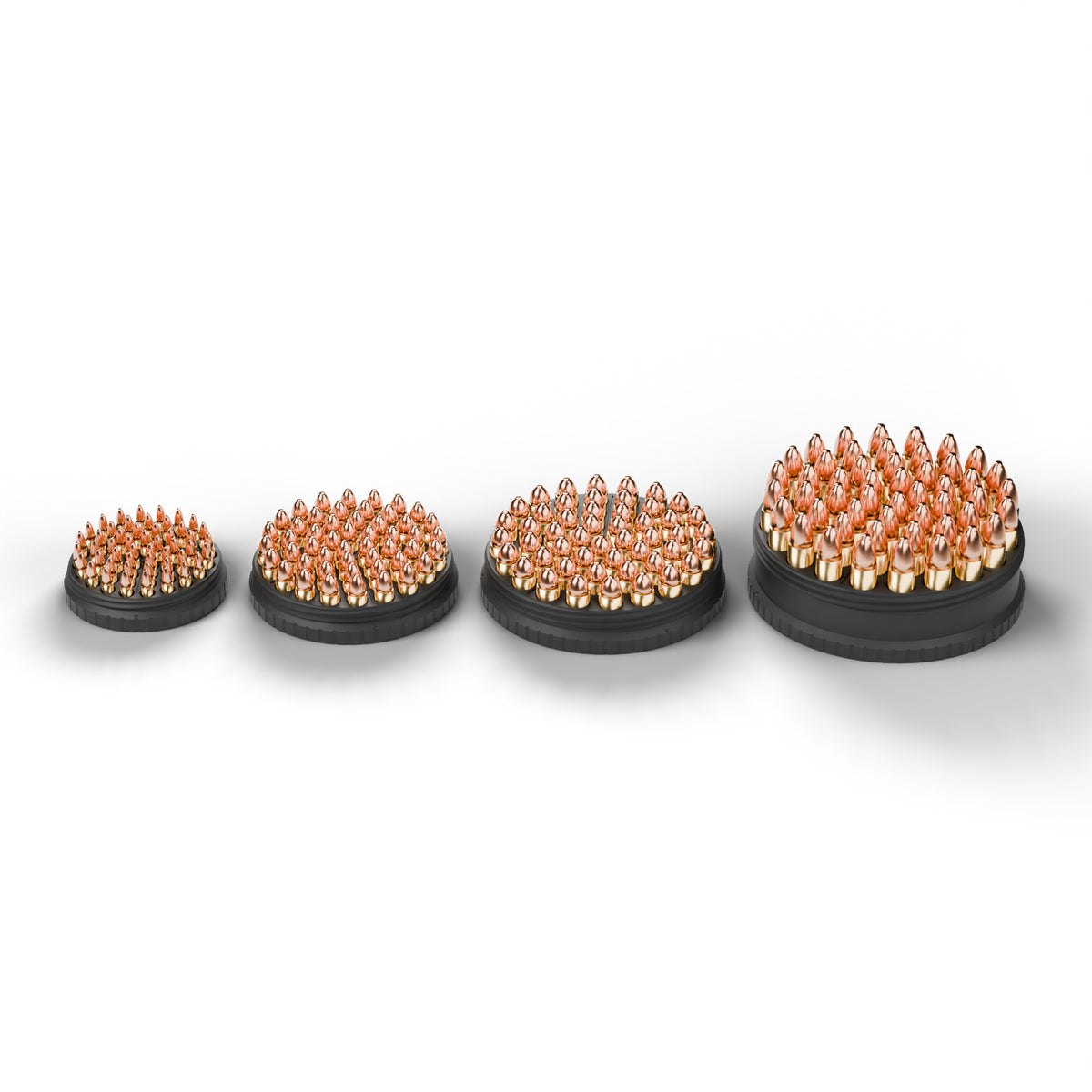

Dimensions by caliber
Caliber
Base diameter × closed height (mm)
Lid diameter (mm)
Socket Ø (mm)
9mm Luger
110.0 × 38.2
111.2
10.30
.380 ACP
106.2 × 33.8
107.2
9.85
.40 S&W
117.0 × 37.8
118.1
11.12
.45 ACP
129.0 × 42.0
130.2
12.54
10mm Auto
117.1 × 40.9
118.3
11.14
.38 Special
120.4 × 48.5
121.6
11.53
.357 Magnum
120.4 × 49.5
121.6
11.53

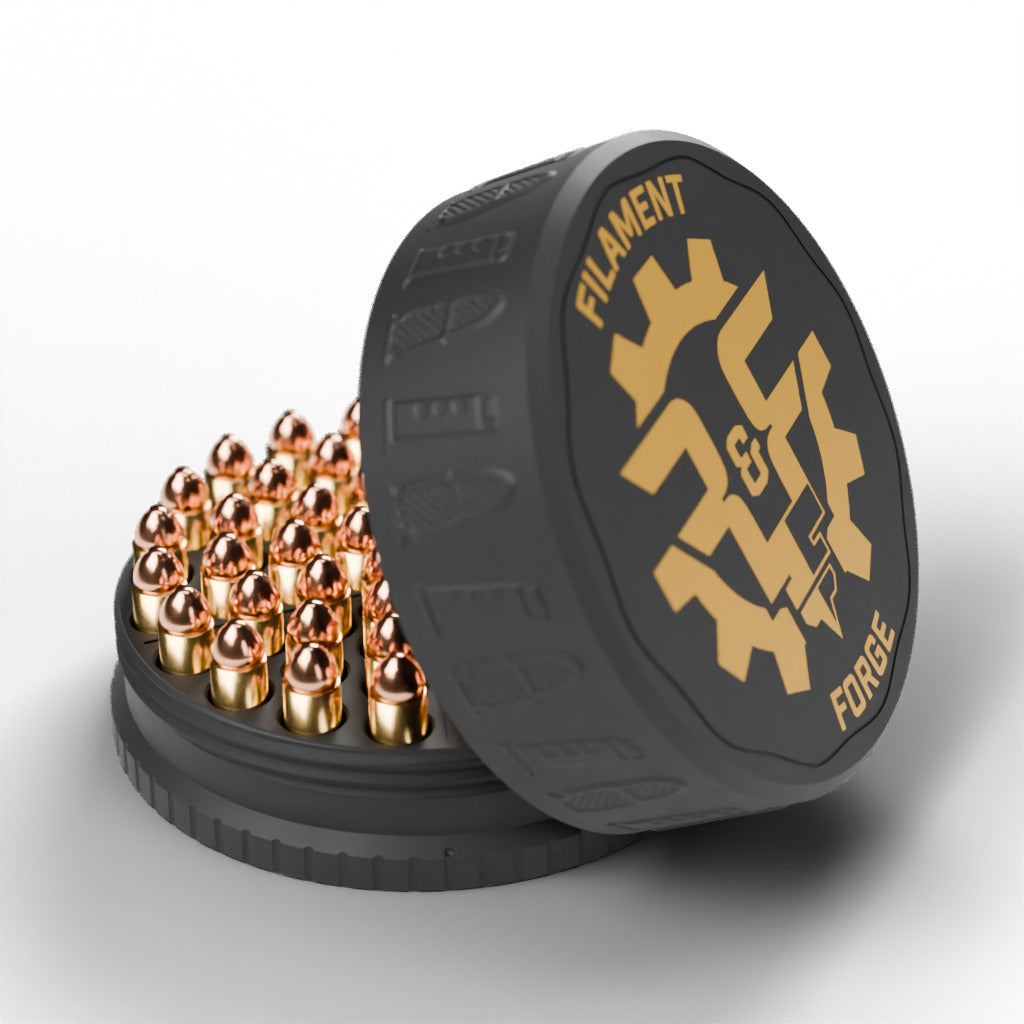

.44 Magnum
136.4 × 51.0
137.6
13.41
.44 Special
136.4 × 51.1
137.6
13.41
.45 Colt
135.9 × 50.7
137.2
13.36
.22 LR
85.5 × 34.6
86.4
7.41
.22 WMR
90.2 × 41.6
91.2
7.97
.25 ACP
90.7 × 33.8
91.7
8.02

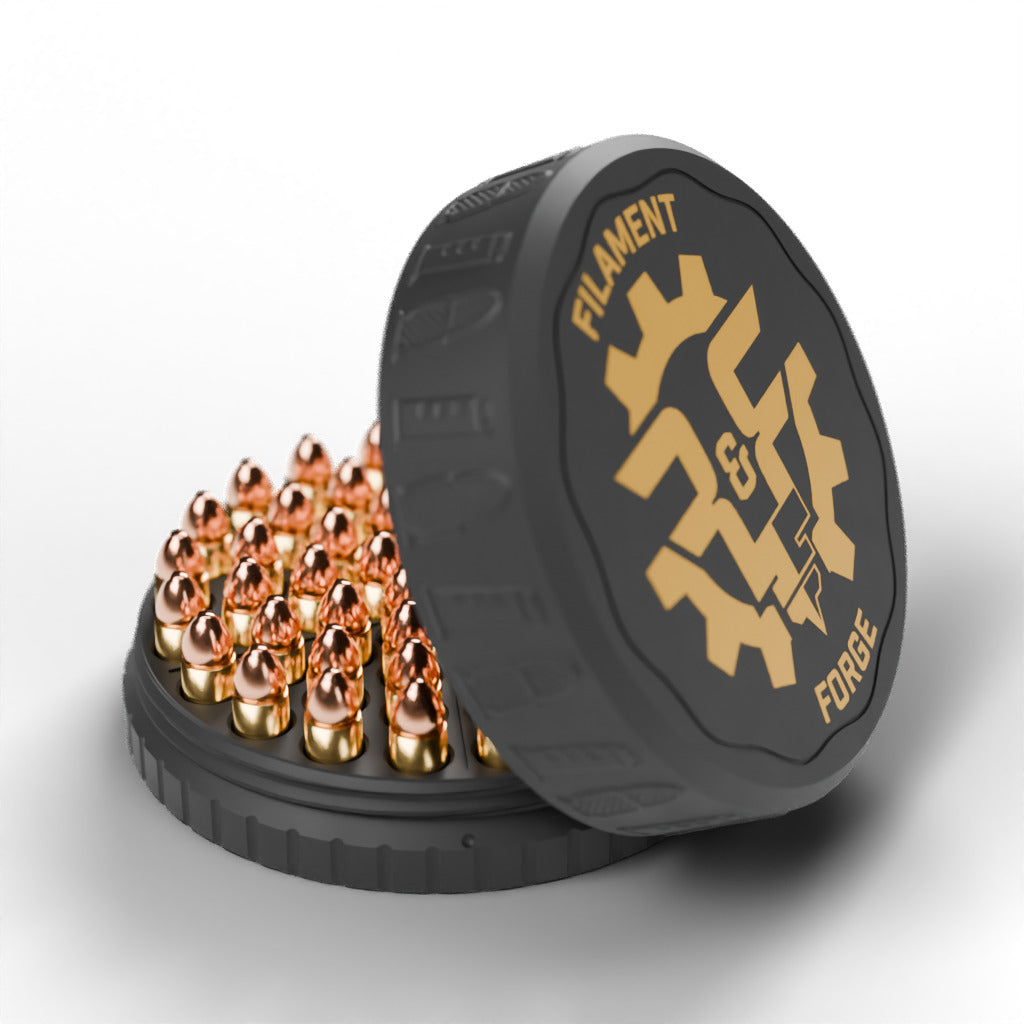

.32 ACP
102.7 × 33.8
103.7
9.44
.327 Federal Magnum
106.4 × 45.6
107.6
9.88
5.7x28mm
93.0 × 48.0
94.0
8.30

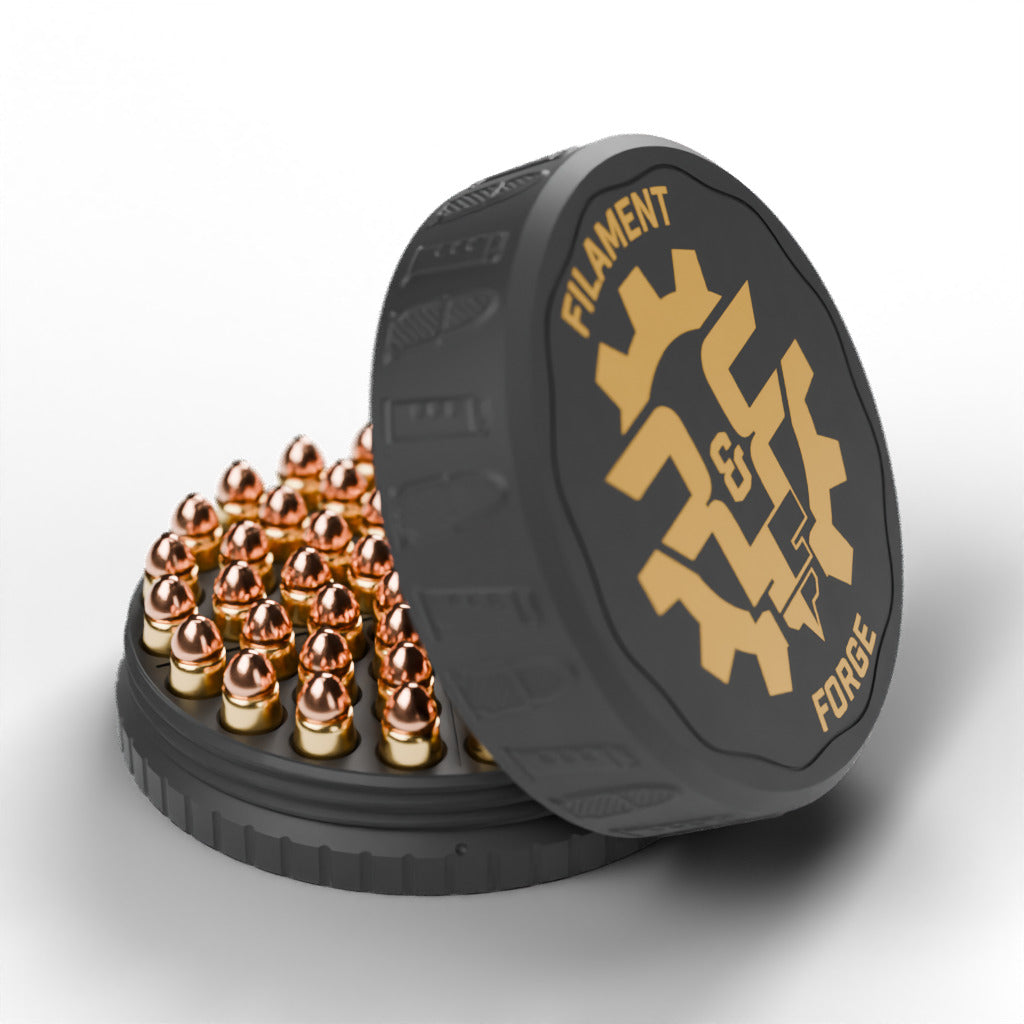

.357 SIG
117.0 × 37.9
118.1
11.12
.45 GAP
128.2 × 36.8
129.3
12.44
9mm Makarov
110.0 × 33.8
111.0
10.30

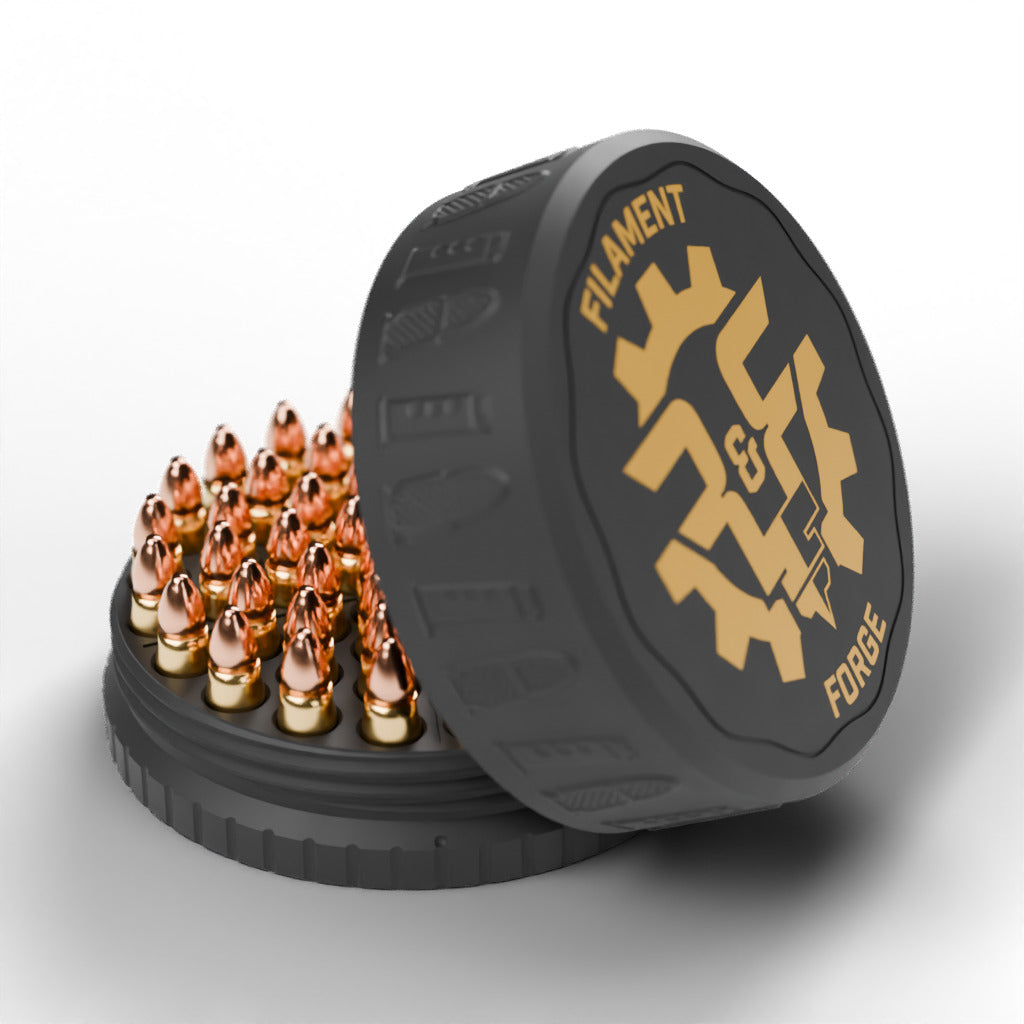

7.62x25mm Tokarev
110.0 × 43.7
111.2
10.30
.38 Super
113.0 × 41.2
114.2
10.66
.41 Magnum
131.6 × 50.2
132.8
12.85
.454 Casull
135.9 × 55.0
137.2
13.36

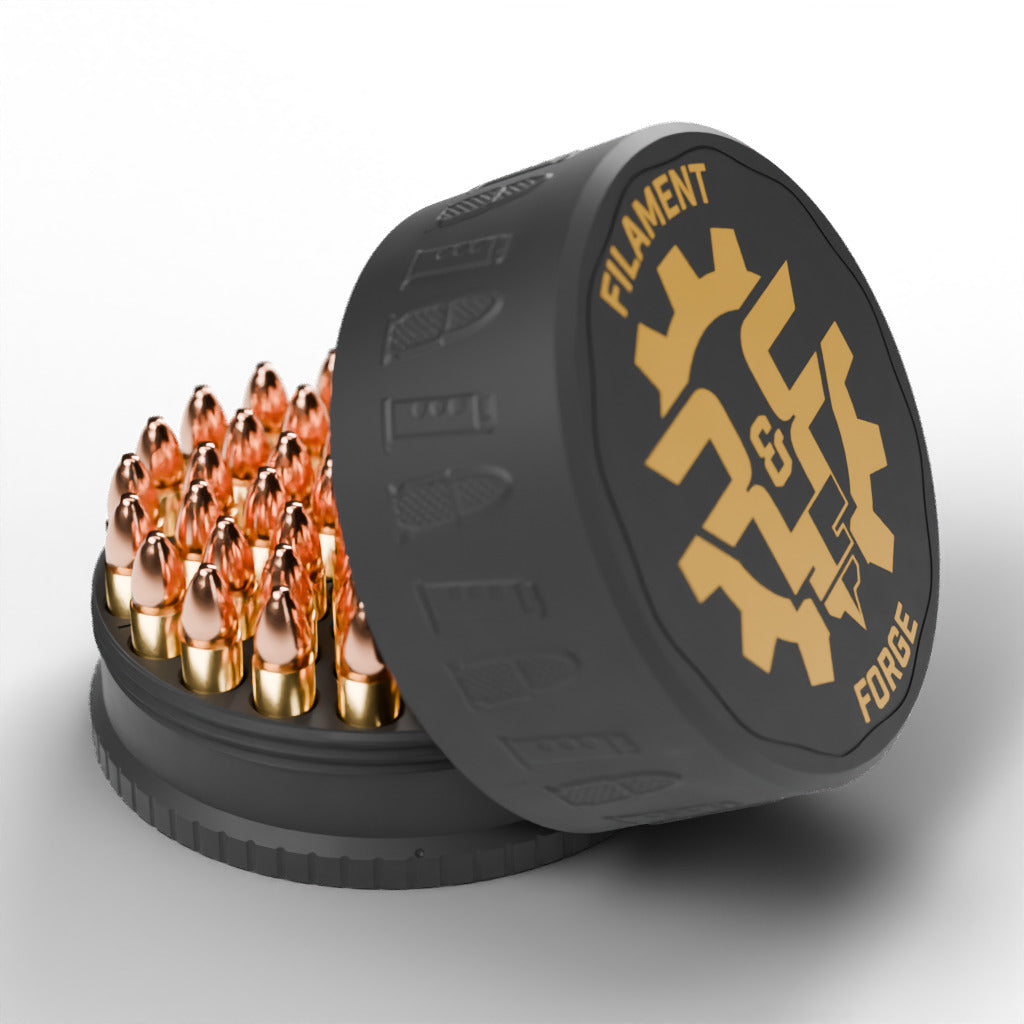

.500 S&W Magnum
145.4 × 69.0
146.6
14.47
.30 Super Carry
99.7 × 37.6
100.8
9.09
Optional. Leave blank for a standard print. We'll email you a proof to approve before we print.
